Specification

• Card reading frequency : 13.56MHz

• Power supply : 12V DC, ≤ 500 mA

• Power consumption : ≤ 2 W

• Working temperature : -20 °C to 65 °C (-4 °F to 149 °F)

• Working humidity : 10% to 90% (no condensing)

• Dimensions : 132.0 mm × 92.3 mm × 20.5 mm (5.20” × 3.63” × 0.81")

• Installation : Applied for 120 Gang Box Only

• Weight : ≤ 0.14 kg (0.3 lb)

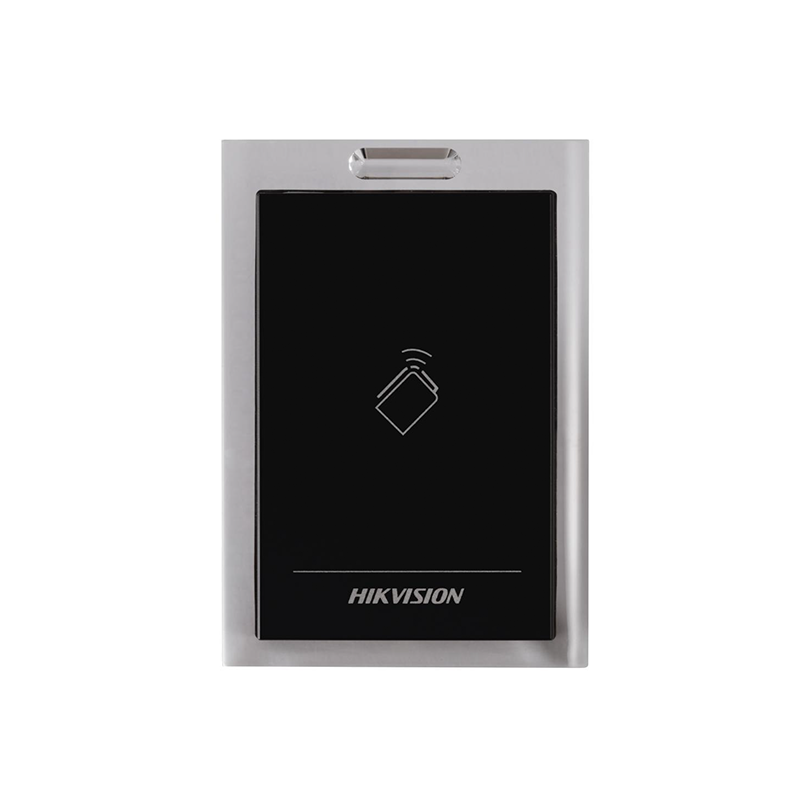

• Keypad : DS-K1101M: No keypad
